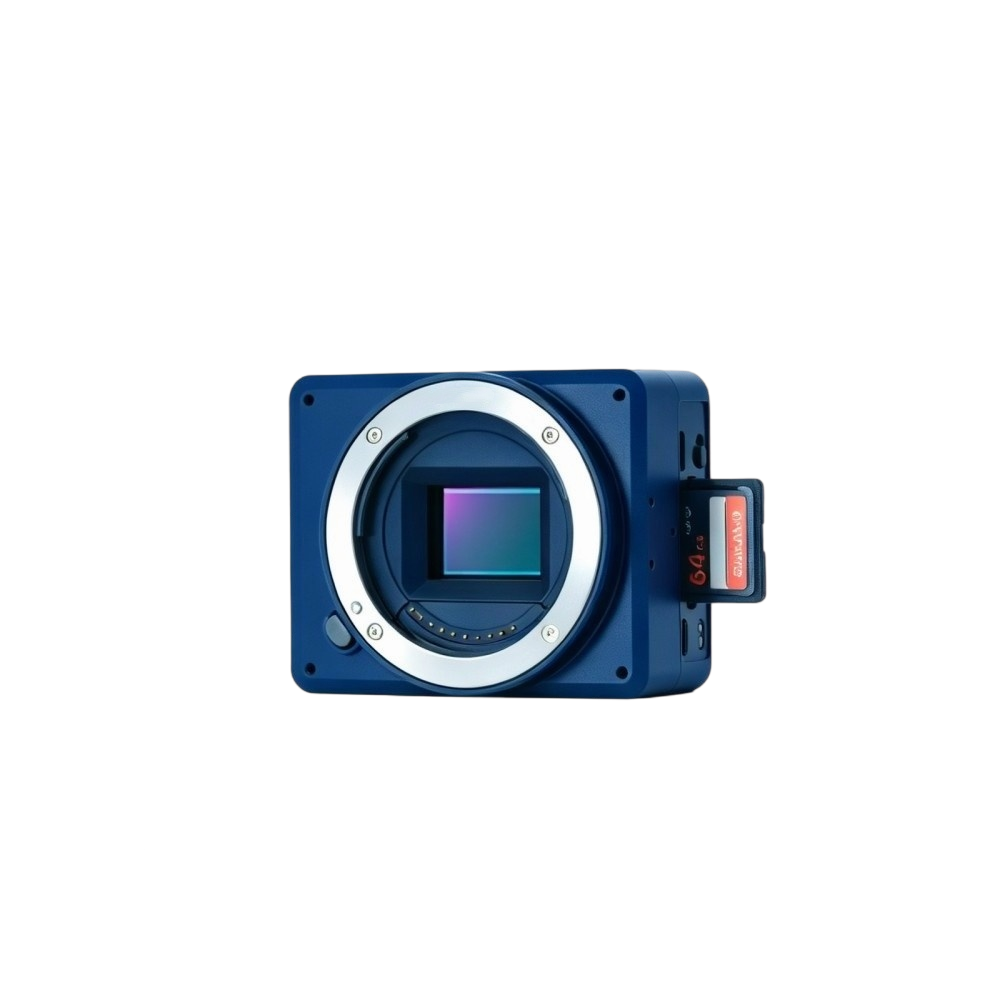

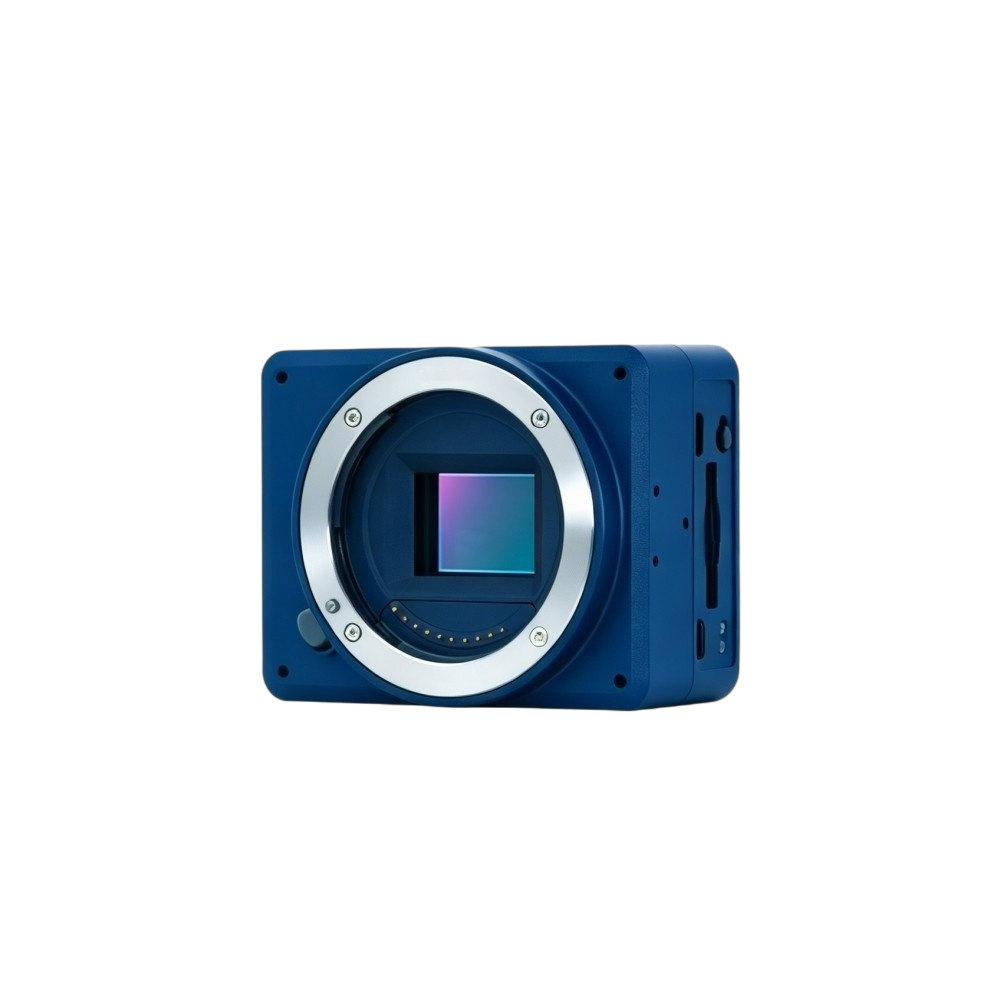

Mapper 24S Drone Mapping Cameras (Assembled in USA)

U.S. Assembled. Lightweight. Built for Professional UAV Mapping.

The Mapper 24S camera now is assembled in the USA by UnmannedRC USA for customers who value local assembly, quality control, and responsive U.S.-based support.

Designed specifically for modern UAV mapping, surveying, photogrammetry, and LiDAR applications, the 24S V1 combines a high-resolution 24MP APS-C sensor with an exceptionally lightweight and compact form factor.

With a durable aluminum housing, flexible mounting holes on both the side and rear, and rear-accessible camera controls, the Mapper 24S is designed to integrate easily into professional UAV payload systems.

Assembled in the USA

The Mapper 24S is assembled in the United States by UnmannedRC USA.

U.S. assembly allows us to perform local inspection, configuration, and quality-control processes before the camera reaches the customer. It also gives U.S. customers a direct local point of contact for product support and technical assistance.

Our goal is simple: bring more of the product preparation and quality-control process closer to the customer.

U.S. Assembled • U.S. Quality Control • U.S. Support

Please note: U.S. assembly does not necessarily mean that every component or part of the camera is manufactured in the United States. Product-origin information may vary by component.

Designed for Lightweight UAV Platforms

At only 152 g, the 24S V1 is designed for UAV applications where payload weight is critical.

Its lightweight construction allows operators to maintain greater payload flexibility while still benefiting from a high-resolution APS-C imaging system.

The compact 76.5 × 62 × 38.4 mm body makes it suitable for integration into a wide range of UAV platforms, custom payload systems, and professional aerial mapping configurations.

24MP APS-C Imaging

At the heart of the 24S V1 is a 24MP APS-C sensor, providing high-resolution imagery for professional aerial applications.

The camera is designed for applications where image detail, payload weight, and system integration are important considerations.

Ideal applications include:

• Aerial mapping

• Photogrammetry

• Land surveying

• 3D mapping

• LiDAR + camera systems

• Infrastructure inspection

• Construction surveying

• Agricultural mapping

• UAV research and development

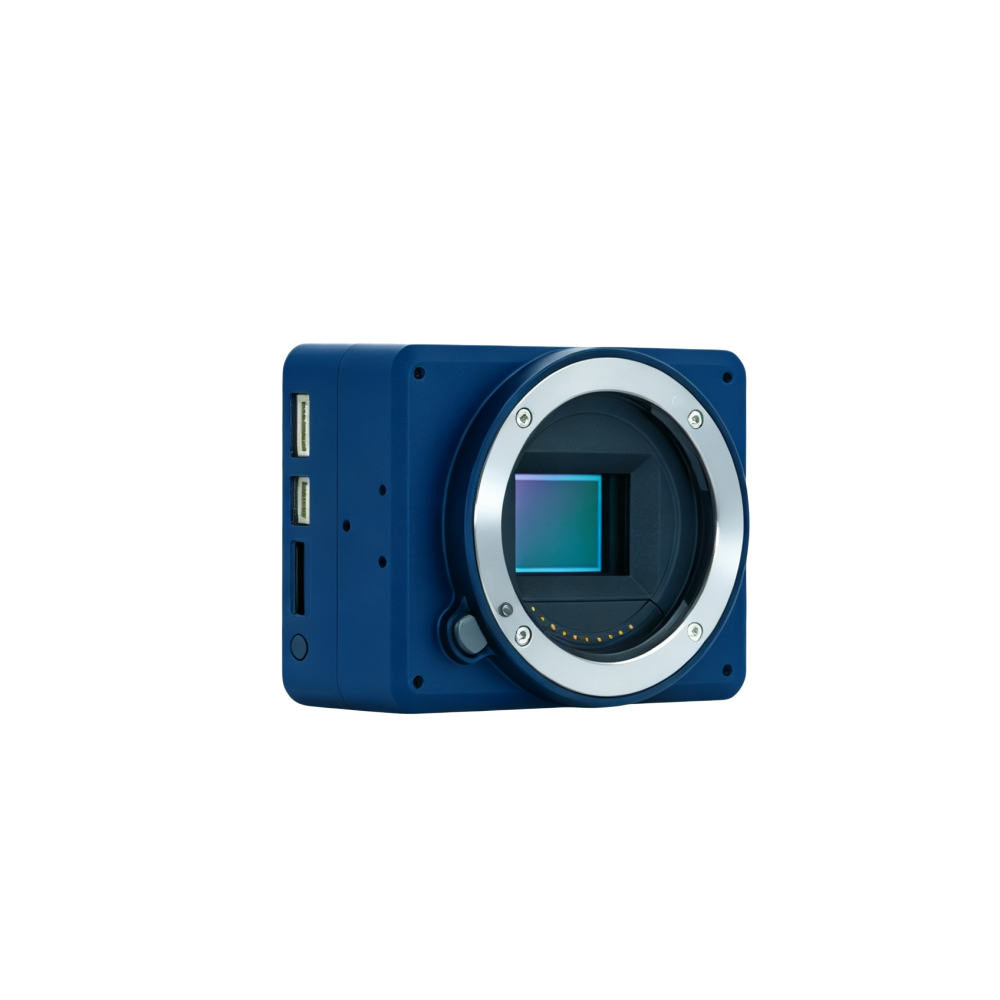

Flexible UAV & LiDAR Mounting

The 24S V1 features integrated mounting holes on both the side and rear of the camera, giving system integrators additional flexibility when designing UAV payload systems.

The camera is particularly well suited for:

• 3-axis gimbal mounting

• LiDAR mounting

• Custom UAV payloads

• Fixed-wing UAV platforms

• Multirotor UAV platforms

• Custom aerial imaging systems

The flexible mounting design allows the camera to be positioned according to the requirements of different UAV and payload configurations.

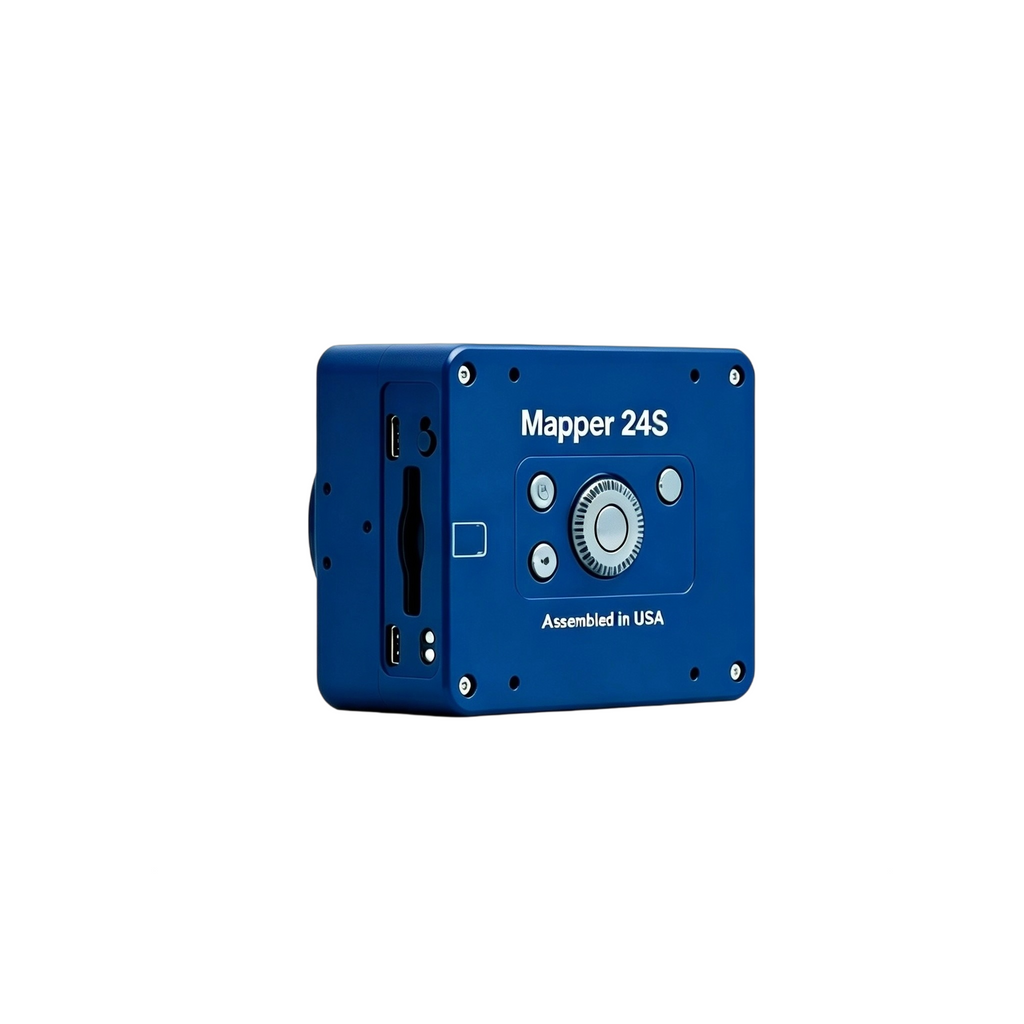

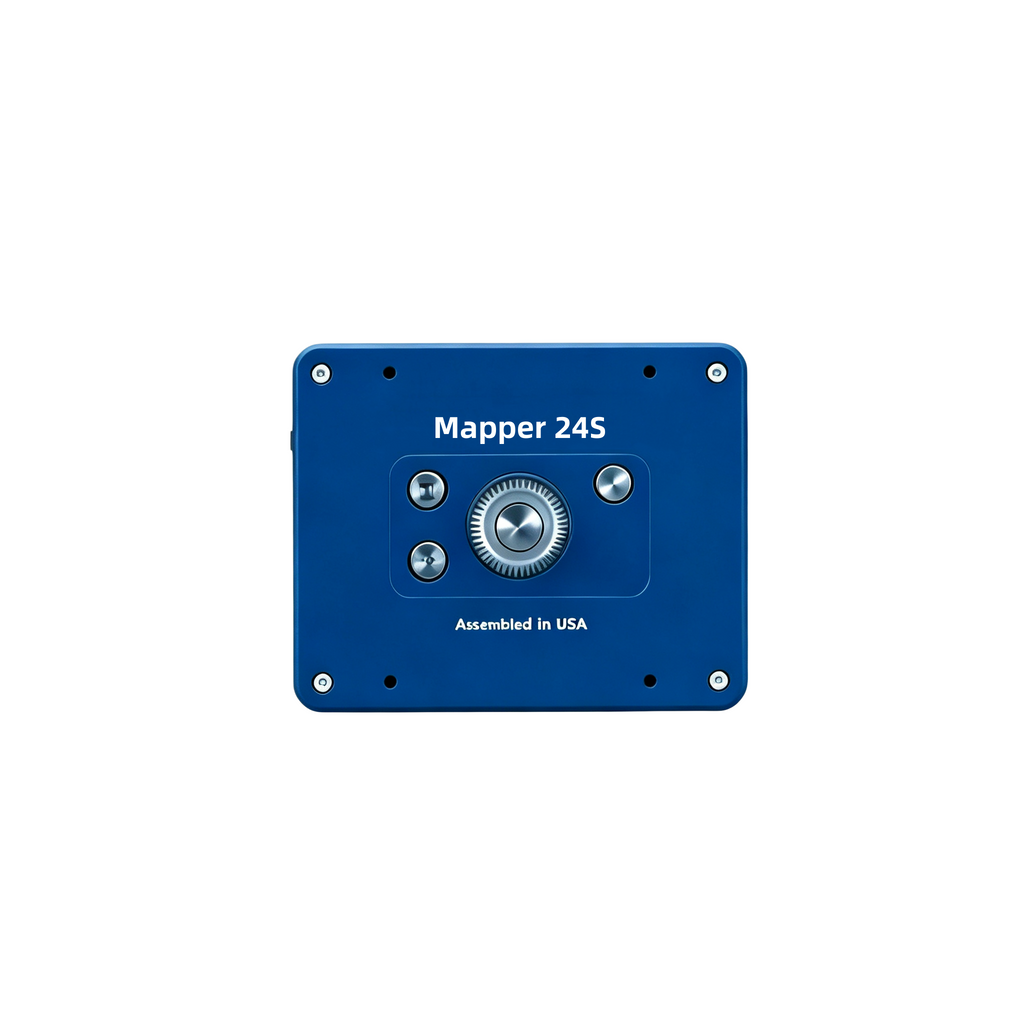

Rear-Mounted Camera Controls

A key improvement of the 24S V1 is its redesigned control layout.

All camera buttons are positioned on the rear of the camera, making camera settings easier to access during installation and field operation.

This is especially useful when the camera is installed inside a UAV payload or mounted to a gimbal. Operators can access the controls without unnecessarily removing the camera from its mounting system.

Key Features

🇺🇸 U.S. Assembly

Assembled in the USA by UnmannedRC USA, with local inspection, configuration, and quality-control processes to meet USA drone components regulation and policy

152 g Lightweight Body

A camera body weight of only 152 g makes the 24S V1 an excellent choice for payload-sensitive UAV platforms.

Compact Design

At just 76.5 × 62 × 38.4 mm, the compact body simplifies integration into UAV and payload systems.

Aluminum Housing

The aluminum housing provides a combination of durability, rigidity, and low weight.

24MP APS-C Sensor

High-resolution APS-C imaging for mapping, surveying, photogrammetry, and inspection applications.

Flexible Mounting

Side and rear mounting holes support a variety of custom UAV, gimbal, and LiDAR configurations.

Rear Camera Controls

All camera buttons are located on the rear panel for easier setup and field operation.

Specifications

Image Sensor

Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:24.3
Sensor Format:APS-C
Sensor size:366.6mm2 (23.50mm x 15.60mm)
Approximate Pixel Pitch:3.92 microns
Focal Length Multiplier:1.5x
Aspect Ratio:3:2
Color Filter Type:RGBG
Anti Aliasing Filter:Fixed
Color Depth （bits):23.8
Maximum Effective ISO:1,347

Image Capture

Image Resolution:
6000 x 4000 (24.0 MP, 3:2),
6000 x 3376 (20.3 MP, 16:9),
4240 x 2832 (12.0 MP, 3:2),
4240 x 2400 (10.2 MP, Other),
3008 x 2000 (6.0 MP, 3:2),
3008 x 1688 (5.1 MP, 16:9),
12416 x 1856 (23.0 MP, Other),
8192 x 1856 (15.2 MP, Other),
2160 x 5536 (12.0 MP, Other),
2160 x 3872 (8.4 MP, Other)
Image File Format:JPEG, RAW, RAW+JPEG
Continuous-mode frames/second:4.0

Video Capture

Video Resolution:
1920x1080 (60p/60i/30p/24p)
1440x1080 (30p)
640x480 (30p)
Video File Format:XAVC S/AVCHD 2.0 / MP4
HD Video Out:Yes
HD Video Connection:HDMI

Lens & Optics

Lens Mount:Sony E
Normal Focus Range:25 cm to Infinity
Auto Focus: Yes
Manual Focus: Yes

Display (detached)

Power: 5V DC
Buttons: No
Screen Size: 2 inch mini touch screen

Camera

Camera Size:  7.7*6.2*3.8 cm
Camera Weight: 152 g
Package Size: 30*20*15 cm
Package Weight: 500 g
Power: 10-25V DC Lipo or Liion
Operating Temperature: -10 to 40°C
